1.完整项目描述和程序获取
>面包多安全交易平台:https://mbd.pub/o/bread/Y56UmZ1s
>如果链接失效，可以直接打开本站店铺搜索相关店铺：
>如果链接失效，程序调试报错或者项目合作也可以加微信或者QQ联系。
2.部分仿真图预览
3.算法概述
在数字通信的三种调制方式（ASK、FSK、PSK)中， 就频带利用率和抗噪声性能（或功率利用率）两个方面来看，一般而言，都是PSK系统最佳。所以PSK在 中、高速数据传输中得到了广泛的应用。
4.部分源码
.............................................................
%ASK
sa1=sin(2*pi*f1*t);
E1=sum(sa1.^2);
sa1=sa1/sqrt(E1); %unit energy
sa0=0*sin(2*pi*f1*t);
%FSK
sf0=sin(2*pi*f1*t);
E=sum(sf0.^2);
sf0=sf0/sqrt(E);
sf1=sin(2*pi*f2*t);
E=sum(sf1.^2);
sf1=sf1/sqrt(E);
%PSK
sp0=-sin(2*pi*f1*t)/sqrt(E1);
sp1=sin(2*pi*f1*t)/sqrt(E1);
..........................................................
figure(1)
subplot(411)
stairs(0:10,[b(1:10) b(10)],'linewidth',1.5)
axis([0 10 -0.5 1.5])
title('Message Bits');grid on
subplot(412)
tb=0:1/30:10-1/30;
plot(tb, ask(1:10*30),'b','linewidth',1.5)
title('ASK Modulation');grid on
subplot(413)
plot(tb, fsk(1:10*30),'r','linewidth',1.5)
title('FSK Modulation');grid on
subplot(414)
plot(tb, psk(1:10*30),'k','linewidth',1.5)
title('PSK Modulation');grid on
xlabel('Time');ylabel('Amplitude')
%AWGN
for snr=0:20
askn=awgn(ask,snr);
pskn=awgn(psk,snr);
fskn=awgn(fsk,snr);
.........................................................
%BER
errA=0;errF=0; errP=0;
for i=1:n
if A(i)==b(i)
errA=errA;
else
errA=errA+1;
end
if F(i)==b(i)
errF=errF;
else
errF=errF+1;
end
if P(i)==b(i)
errP=errP;
else
errP=errP+1;
end
end
BER_A(snr+1)=errA/n;
BER_F(snr+1)=errF/n;
BER_P(snr+1)=errP/n;
end

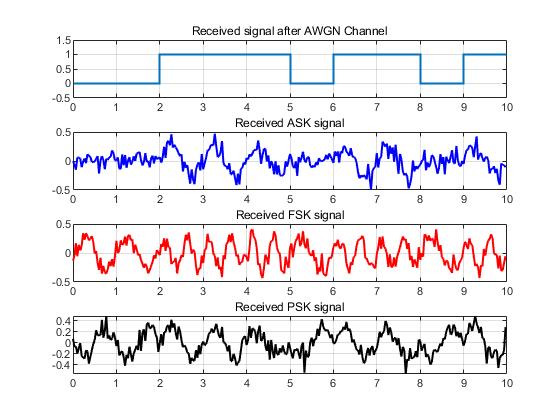

figure(2)
subplot(411)
stairs(0:10,[b(1:10) b(10)],'linewidth',1.5)
axis([0 10 -0.5 1.5]);grid on
title('Received signal after AWGN Channel')
subplot(412)
tb=0:1/30:10-1/30;
plot(tb, askn(1:10*30),'b','linewidth',1.5)
title('Received ASK signal');grid on
subplot(413)
plot(tb, fskn(1:10*30),'r','linewidth',1.5)
title('Received FSK signal');grid on
subplot(414)
plot(tb, pskn(1:10*30),'k','linewidth',1.5)
title('Received PSK signal');grid on

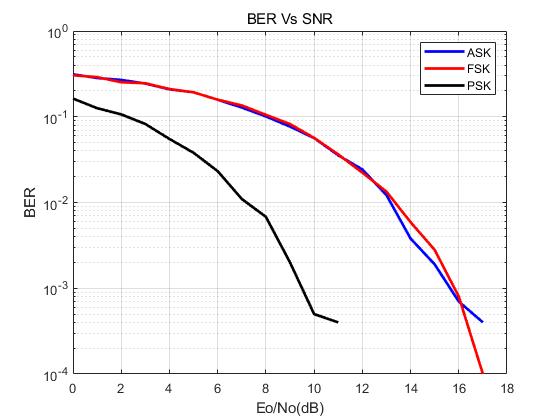

figure(3)
semilogy(0:20,BER_A, 'b','linewidth',2)
title('BER Vs SNR')
grid on;
hold on
semilogy(0:20,BER_F,'r','linewidth',2)
semilogy(0:20,BER_P, 'k','linewidth',2)
xlabel('Eo/No(dB)')
ylabel('BER')
hold off
legend('ASK','FSK','PSK');
