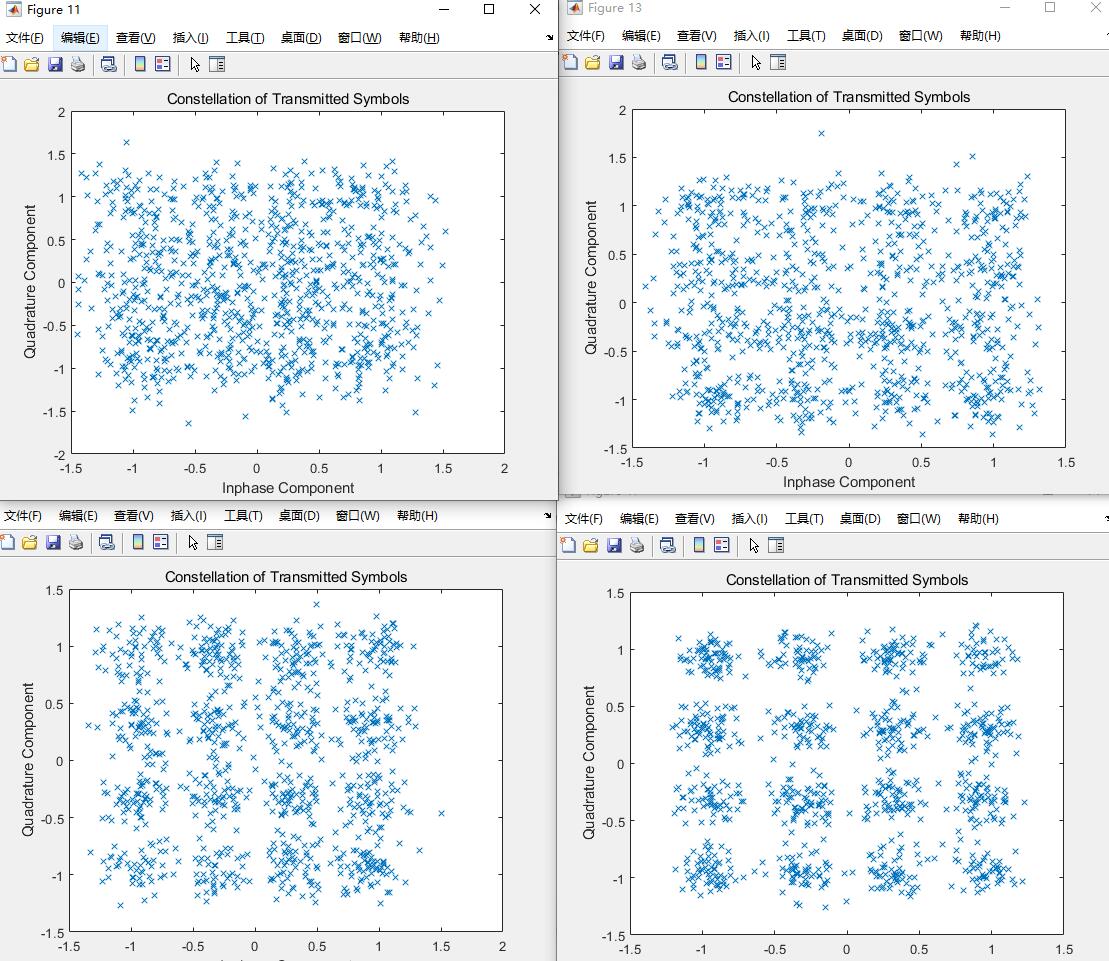

2.部分仿真图预览
3.算法概述
16QAM 信号采取正交相干解调的方法解调，解调器首先对收到的 16QAM 信号进行正交相干解调，一路与 cos ω c t 相乘，一路与 sin ω c t 相乘。然后经过低通滤波器，低通滤波器 LPF 滤除乘法器产生的高频分量，获得有用信号，低通滤波器LPF 输出经抽样判决可恢复出电平信号。
4.部分源码
bit_count = 4*1000;
% Range of SNR over which to simulate
Eb_No = -6: 1: 10;
SNR = Eb_No + 10*log10(4);
% Start the main calculation loop
for aa = 1: 1: length(SNR)
% Initiate variables
T_Errors = 0;
T_bits = 0;
% Keep going until you get 100 errors
while T_Errors < 100
% Generate some random bits
uncoded_bits = round(rand(1,bit_count));
% Split the stream into 4 substreams
B = reshape(uncoded_bits,4,length(uncoded_bits)/4);
B1 = B(1,:);
B2 = B(2,:);
B3 = B(3,:);
B4 = B(4,:);
% 16-QAM modulator
% normalizing factor
a = sqrt(1/10);
% bit mapping
tx = a*(-2*(B3-0.5).*(3-2*B4)-j*2*(B1-0.5).*(3-2*B2));
% Noise variance
N0 = 1/10^(SNR(aa)/10);
% Send over Gaussian Link to the receiver
rx = tx + sqrt(N0/2)*(randn(1,length(tx))+i*randn(1,length(tx)));
% Merge into single stream again
temp = [B5;B6;B7;B8];
B_hat = reshape(temp,1,4*length(temp));
% Calculate Bit Errors
diff = uncoded_bits - B_hat ;
T_Errors = T_Errors + sum(abs(diff));
T_bits = T_bits + length(uncoded_bits);
end
% Calculate Bit Error Rate
BER(aa) = T_Errors / T_bits;
disp(sprintf('bit error probability = %f',BER(aa)));
% Plot the received Symbol Constellation
figure;
grid on;
plot(rx,'x');
xlabel('Inphase Component');
ylabel('Quadrature Component');
title('Constellation of Transmitted Symbols');
end
