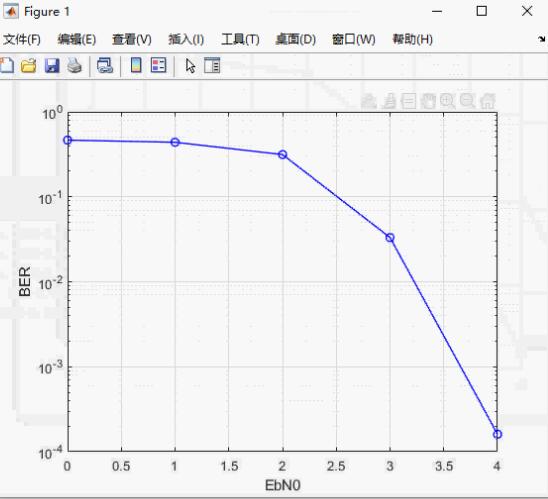

2.部分仿真图预览
3.算法概述
Polar码的主要思想是将多个子信道合并成一个等效信道，然后将等效信道分裂成多个信道容量呈两极分化（信道容量接近0或者1）的子信道，最后将信息在信道容量接近1的无噪子信道发送信息，而在信道容量接近0的子信道上发送收发已知的比特信息，从而提高信息传输的可靠性。Polar码的极化过程主要由两步来完成，第一步：信道联合；第二步：信道分裂。
4.部分源码
thod will use it
crc_size = 0;
[FZlookup,bitreversedindices,F_kron_n] = initPC(polar_N,polar_K,polar_n,construction_method,design_snr_dB,sigma,crc_size);
alpha = 0.6;
iter_num = 5;
isInterleaver = 1;
load('codebook_6users_4chips_qpsk.mat','CB');
K = size(CB, 1); % number of orthogonal resources
M = size(CB, 2); % number of codewords in each codebook
V = size(CB, 3); % number of users (layers)
%polar initial and encoding
SCAN_ITER_NUM = 1;
N = polar_N/log2(M); %Number of scma symbols of each user
SNR = EbN0 + 10*log10(polar_K/polar_N*log2(M)*V/K);
N0 = 1./10.^(SNR/10); % Noise variance
Nerr = zeros(1,length(EbN0));
Nbits = zeros(1,length(EbN0));
BER = zeros(1, length(EbN0));
%maxNumErrs = 10000;
maxNumBits = 1e7; %total numer of bits
minNumBits = 50000;
minNumErrs = 50;
for iter_ebn0 = 1:length(EbN0)
while ((min(Nerr(:,iter_ebn0)) < minNumErrs) && (Nbits(1,iter_ebn0) < maxNumBits) || (Nbits(1,iter_ebn0) <minNumBits) )%100 010 000
infobits = randi([0 1],V,polar_K);
c = zeros(V,polar_N);
for user = 1:V
c(user,:) = pencode(infobits(user,:),FZlookup,crc_size,bitreversedindices,F_kron_n);
end
if isInterleaver ~= 0
interleaver = zeros(V,polar_N);
interleavered_bits = zeros(size(c));
for ii = 1:V
interleaver(ii,:) = randperm(polar_N);
interleavered_bits(ii,:) = c(ii, interleaver(ii,:));
end
else
interleavered_bits = c;
end
temp1 = reshape(interleavered_bits',polar_N*V,1);
temp2 = reshape(temp1,log2(M),N*V);
x_temp = bi2de(temp2',log2(M),'left-msb');
x = reshape(x_temp,N,V);
x = x';
%h = 1/sqrt(2)*(randn(K, V, N)+1j*randn(K, V, N)); % Rayleigh channel
h = ones(K, V, N);
%h = 1/sqrt(2)*(repmat(randn(1, V, N), K, 1)+1j*repmat(randn(1, V, N), K, 1));
s = scmaenc(x, CB, h);
y = awgn(s, SNR(iter_ebn0),'measured');
%Factor graph calculation
mhat_llr = JIDD(y,polar_N,polar_K,FZlookup,K,V,M,N,CB,N0(iter_ebn0),h,iter_num,isInterleaver,interleaver,alpha);
%**********************************************************
llr = reshape(mhat_llr',1,V*polar_K);
m_reshape = reshape(infobits', 1, polar_K*V);
m_hat = llr<0;
err = sum(m_hat~=m_reshape);
Nerr(iter_ebn0) = Nerr(iter_ebn0) + err;
Nbits(iter_ebn0) = Nbits(iter_ebn0) + length(m_reshape);
end
BER(iter_ebn0) = Nerr(iter_ebn0)/Nbits(iter_ebn0);
fprintf('EbN0 is %d, have runned %d bits, found %d errors, BER=%.7f \n',EbN0(iter_ebn0),Nbits(iter_ebn0),Nerr(iter_ebn0),BER(iter_ebn0));
end
